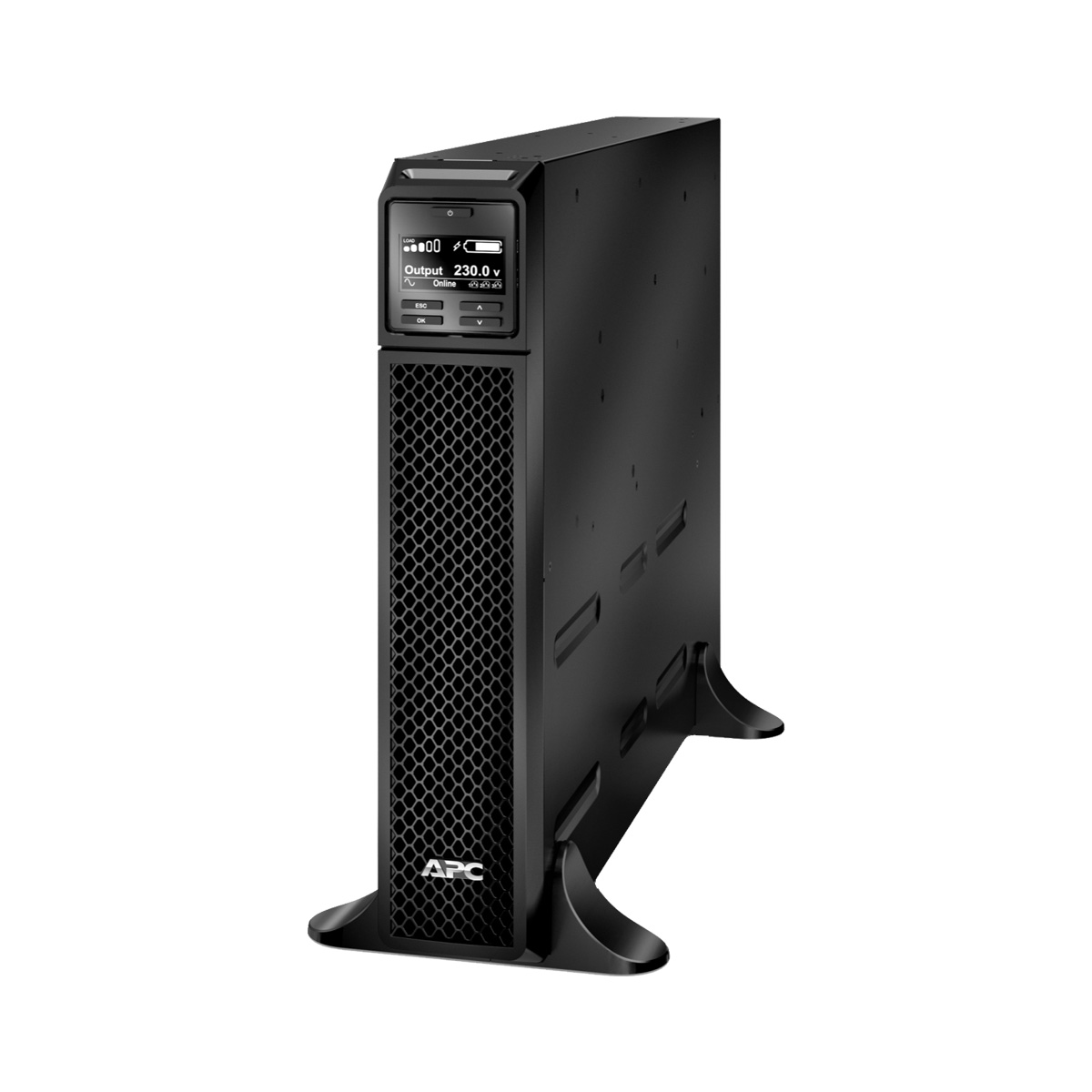

APC Smart-UPS On-Line, 1000VA/1000W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Model: SRT1000XLI

Download Product Datasheet

0 EGP Inc. VAT

Out of stock

SKU SRT1000XLI Categories , , , Tags , , , ,
Overview
PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Lead timeUsually in Stock



Main
Main input voltage230 V
Other input voltage220 V

240 V

Main output voltage230 V
Other output voltage220 V

240 V

Rated power in W1000 W
Rated power in VA1000 VA
Plug standardIEC 60320 C14
Output Connection type6 IEC 60320 C13
Cable length1.83 m
Number of cables1
Battery typeLead-acid battery
Provided equipmentCD with software

Communication cable

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card



General
Product web sub-familyHigh density
Number of power module filled slots0
Number of power module free slots0
RedundantNo



Physical
ColorBlack
Height43.2 cm
Width8.5 cm
Depth50.5 cm
Net weight20.5 kg
Mounting preferenceNo preference
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes
Mounting positionVertical



Input
Network frequency40…70 Hz auto-sensing
Input voltage limits100…275 V 40% load

176…275 V



Output
Maximum configurable power in W1000 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeBuilt-in bypass
Maximum configurable power in VA1000 VA



Conformance
Product certificationsCE

EAC

StandardsEN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation0…40 °C
Relative Humidity0…95 % non-condensing
Operating altitude0…10000 ft
Ambient air temperature for storage-20…50 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level50 dBA
Heat dissipation317 Btu/h
IP degree of protectionIP20



Batteries & Runtime
Run TimeView Run Time Graph
Number of battery filled slots1
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity1
Battery voltage48 V
Battery charger power97 W rated
Battery power in VAH293 VAh runtime
Battery life3…5 year(s)
Replacement batteryAPCRBC155
Battery optionSRT48BP 1 879 VAh

SRT48BP 2 1465 VAh

SRT48BP 3 2051 VAh

SRT48BP 4 2637 VAh

SRT48BP 5 3223 VAh

SRT48BP 6 3809 VAh

SRT48BP 8 4981 VAh

SRT48BP 10 6153 VAh

Extended runtime1



Communications & Management
Free slots1
AlarmAudible and visible alarms prioritized by severity
Emergency power offYes



Surge Protection and Filtering
Surge energy rate432 J

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height24.6 cm
Package 1 Width74.9 cm
Package 1 Length59.4 cm
Package 1 Weight29.6  kg



Contractual warranty
Warranty3 years repair or replace (excluding battery) and 2 years for battery
