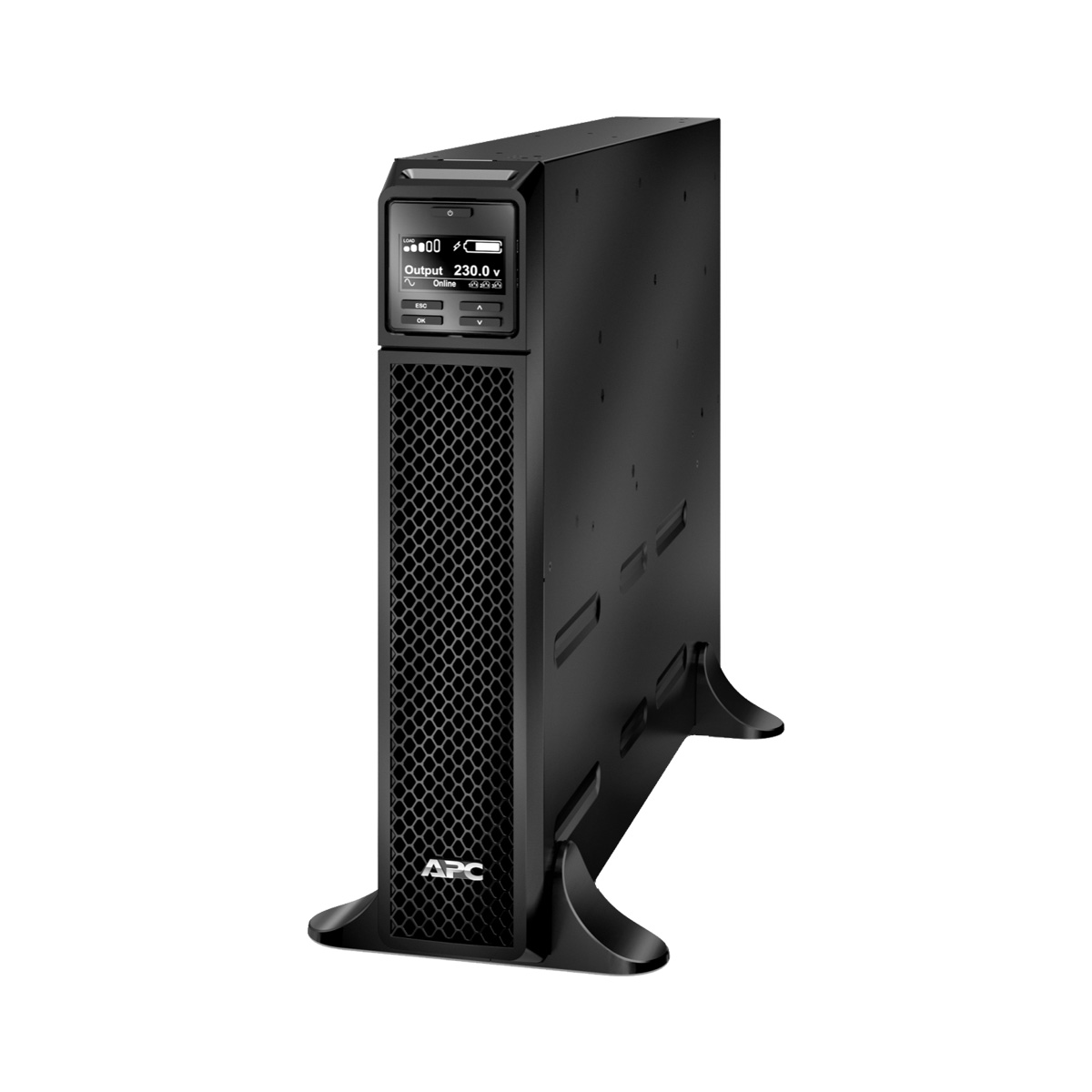

APC SRT1500XLI

APC Smart-UPS On-Line, 1500VA/1500W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit



Download Product Datasheet

Call for Price

SKU SRT1500XLI Categories , , , Tags , , , , Brand: ,

APC SRT1500XLI 1500VA/1500W double-conversion on-line pure sine wave tower On-Line Tower Smart UPS. This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

Overview

Main
Main input voltage230 V
Other input voltage220 V

240 V

Main output voltage230 V
Other output voltage220 V

240 V

Rated power in W1500 W
Rated power in VA1500 VA
Plug standardIEC 60320 C14
Output Connection type6 IEC 60320 C13
Cable length1.83 m
Number of cables1
Battery typeLead-acid battery
Provided equipmentCD with software

Communication cable

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card



General
Product web sub-familyHigh density
Number of power module filled slots0
Number of power module free slots0
RedundantNo



Physical
ColorBlack
Height43.2 cm
Width8.5 cm
Depth50.5 cm
Net weight20.5 kg
Mounting preferenceNo preference
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes
Mounting positionVertical



Input
Network frequency40…70 Hz auto-sensing
Input voltage limits100…275 V



Output
Maximum configurable power in W1500 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeBuilt-in bypass
Maximum configurable power in VA1500 VA



Conformance
Product certificationsCE

EAC

StandardsEN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation0…40 °C
Relative Humidity0…95 % non-condensing
Operating altitude0…10000 ft
Ambient air temperature for storage-20…50 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level50 dBA
Heat dissipation317 Btu/h
IP degree of protectionIP20



Batteries & Runtime
Run TimeView Run Time Graph
Number of battery filled slots1
Number of battery free slots0
Battery recharge time3 h
Battery voltage48 V
Battery charger power108 W rated
Battery power in VAH324 VAh runtime
Battery life3…5 year(s)
Replacement batteryAPCRBC155
Battery optionSRT48BP 1 972 VAh

SRT48BP 2 1620 VAh

SRT48BP 3 2268 VAh

SRT48BP 4 2916 VAh

SRT48BP 5 3564 VAh

SRT48BP 6 4212 VAh

SRT48BP 8 5508 VAh

SRT48BP 10 6804 VAh

Extended runtime1



Communications & Management
Free slots1
Control panelMultifunction LCD status and control console
AlarmAudible and visible alarms prioritized by severity
Emergency power offYes



Surge Protection and Filtering
Surge energy rate432 J

Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height24.6 cm
Package 1 Width74.9 cm
Package 1 Length59.4 cm
Package 1 Weight29.6  kg
Number of Units in Package 312



Contractual warranty
Warranty3 years repair or replace (excluding battery) and 2 years for battery
