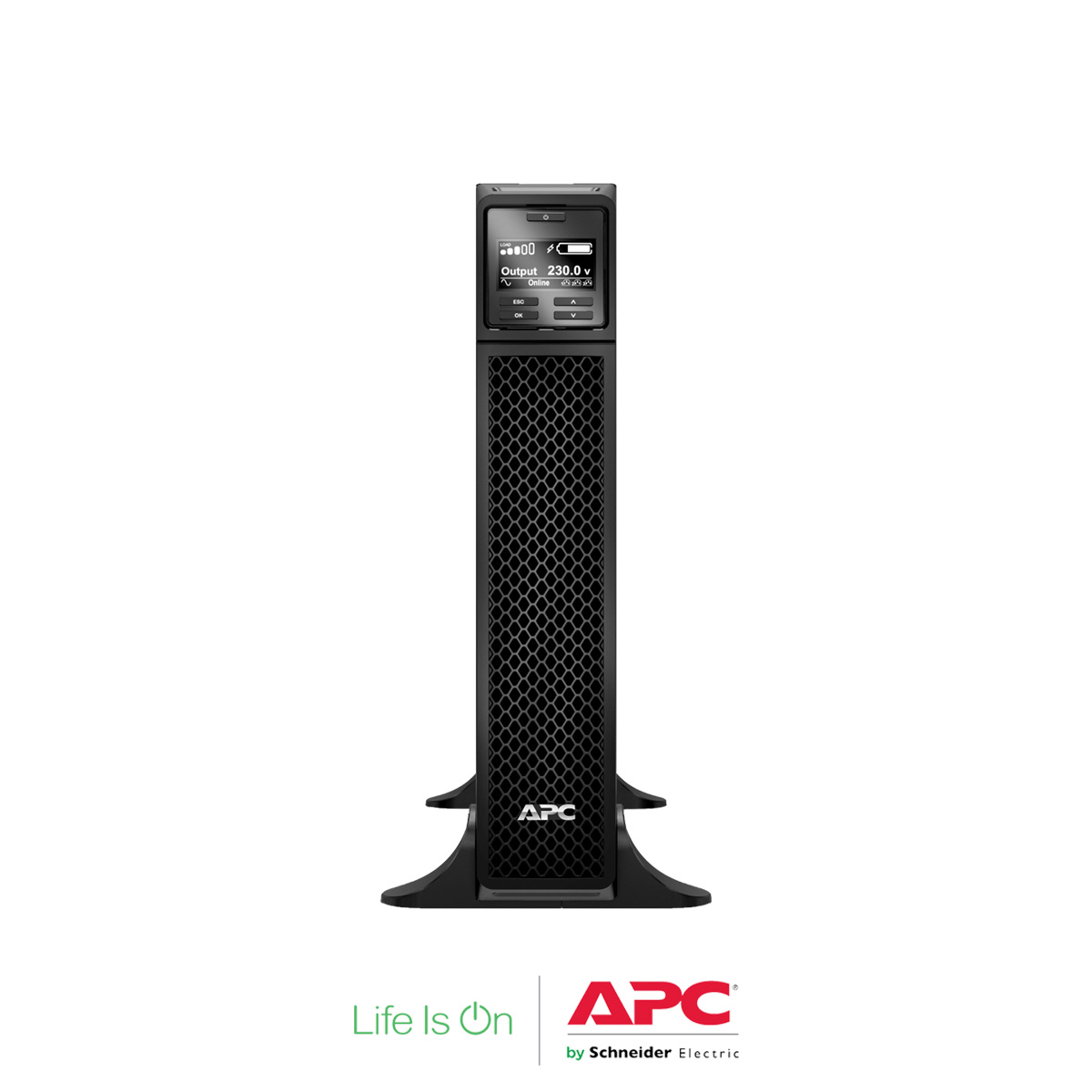

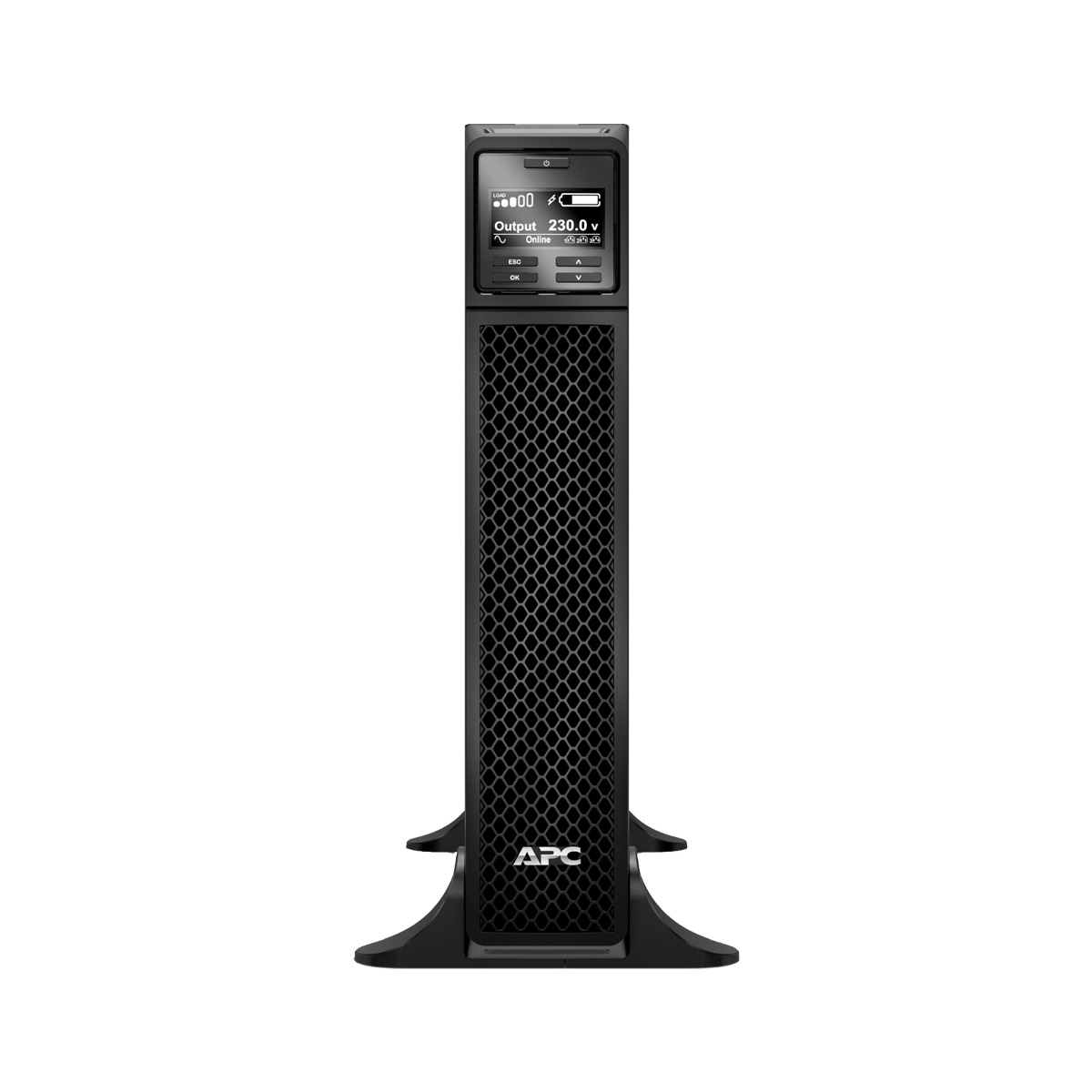

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Model: SRT2200XLI

Download Product Datasheet

0 EGP Inc. VAT

Out of stock

SKU SRT2200XLI Categories , , Tags , , , ,
Overview
PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Lead timeUsually in Stock



Main
Main input voltage230 V
Other input voltage220 V

240 V

Main output voltage230 V
Other output voltage220 V

240 V

Rated power in W1980 W
Rated power in VA2200 VA
Plug standardBS1363A British

IEC 60320 C20

Schuko CEE 7 / EU1-16P

Output Connection type8 IEC 60320 C13

2 IEC Jumpers

2 IEC 60320 C19

Cable length2.44 m
Number of cables1
Battery typeLead-acid battery
Provided equipmentCD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card



General
Product web sub-familyHigh density
Number of power module1400
Number of power module filled slots0
Number of power module free slots0
RedundantNo



Physical
ColorBlack
Height43.2 cm
Width8.5 cm
Depth58.4 cm
Net weight25 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes
Mounting positionVertical



Input
Network frequency40…70 Hz auto-sensing
Input voltage limits100…275 V adjustable (half load)



Output
Maximum configurable power in W1980 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeInternal bypass (automatic and manual)
Maximum configurable power in VA2200 VA



Conformance
Product certificationsCE

EAC

RCM

VDE

MarkingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation0…40 °C
Relative Humidity0…95 % non-condensing
Operating altitude0…10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level55 dBA
Heat dissipation703 Btu/h
IP degree of protectionIP20



Batteries & Runtime
Run TimeView Run Time Graph
EfficiencyView Efficiency Graph
Number of battery filled slots1
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity1
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Battery voltage72 V
Battery charger power122 W rated
Battery power in VAH367 VAh runtime
Battery life3…5 year(s)
Replacement batteryAPCRBC141
Battery optionSRT72BP 1 1101 VAh

SRT72BP 2 1835 VAh

SRT72BP 3 2569 VAh

SRT72BP 4 3303 VAh

SRT72BP 5 4037 VAh

SRT72BP 6 4771 VAh

SRT72BP 8 6239 VAh

SRT72BP 10 7707 VAh

Extended runtime1



Communications & Management
Free slots1
Control panelMultifunction LCD status and control console
AlarmAudible and visible alarms prioritized by severity
Emergency power offYes



Surge Protection and Filtering
Surge energy rate340 J

Packing Units
Unit Type of Package 1PCE
Package 1 Length59.9 cm
Number of Units in Package 11
Number of Units in Package 31
Package 1 Width81 cm
Package 1 Height24.6 cm
Package 1 Weight30.84  kg



Contractual warranty
Warranty3 years repair or replace (excluding battery) and 2 years for battery
