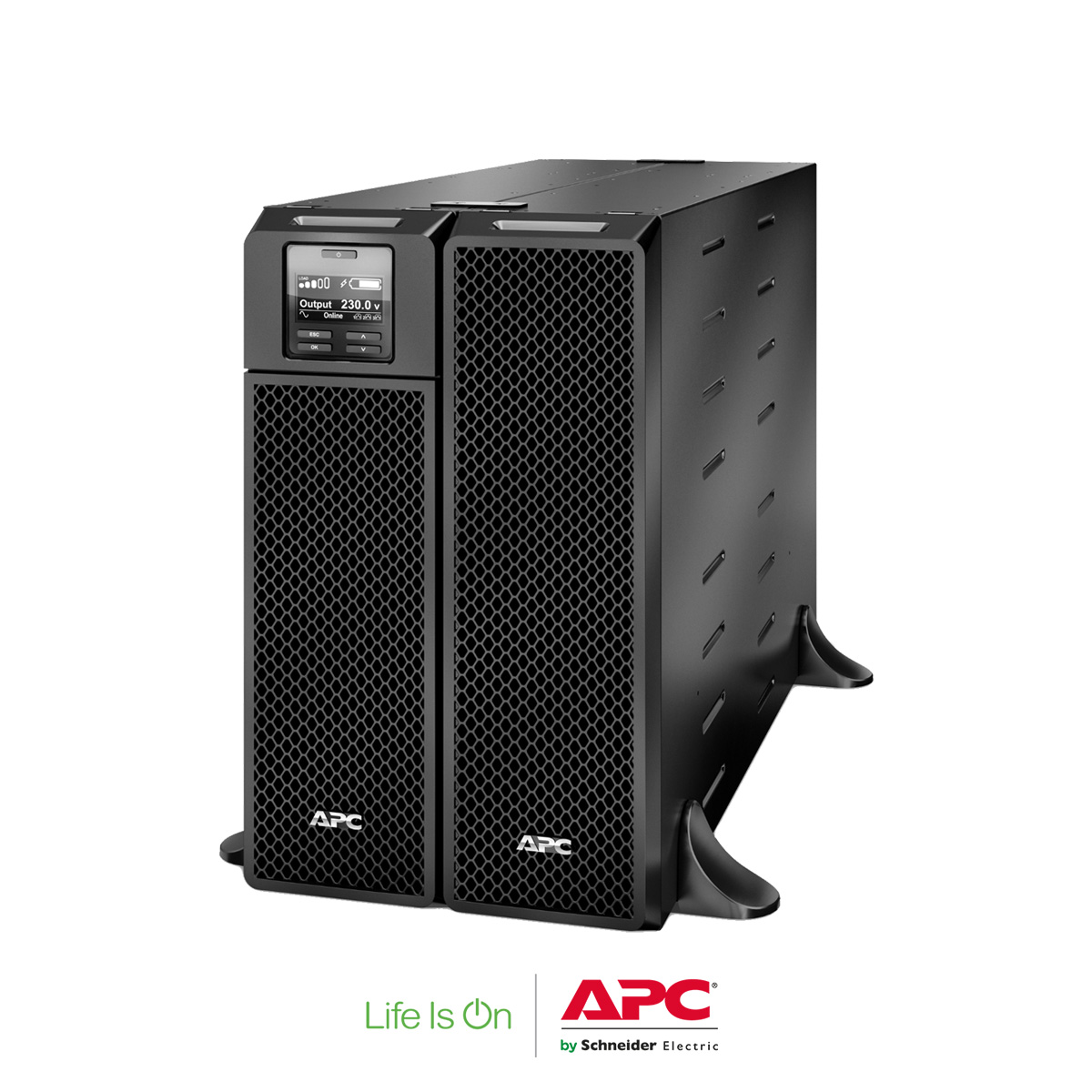

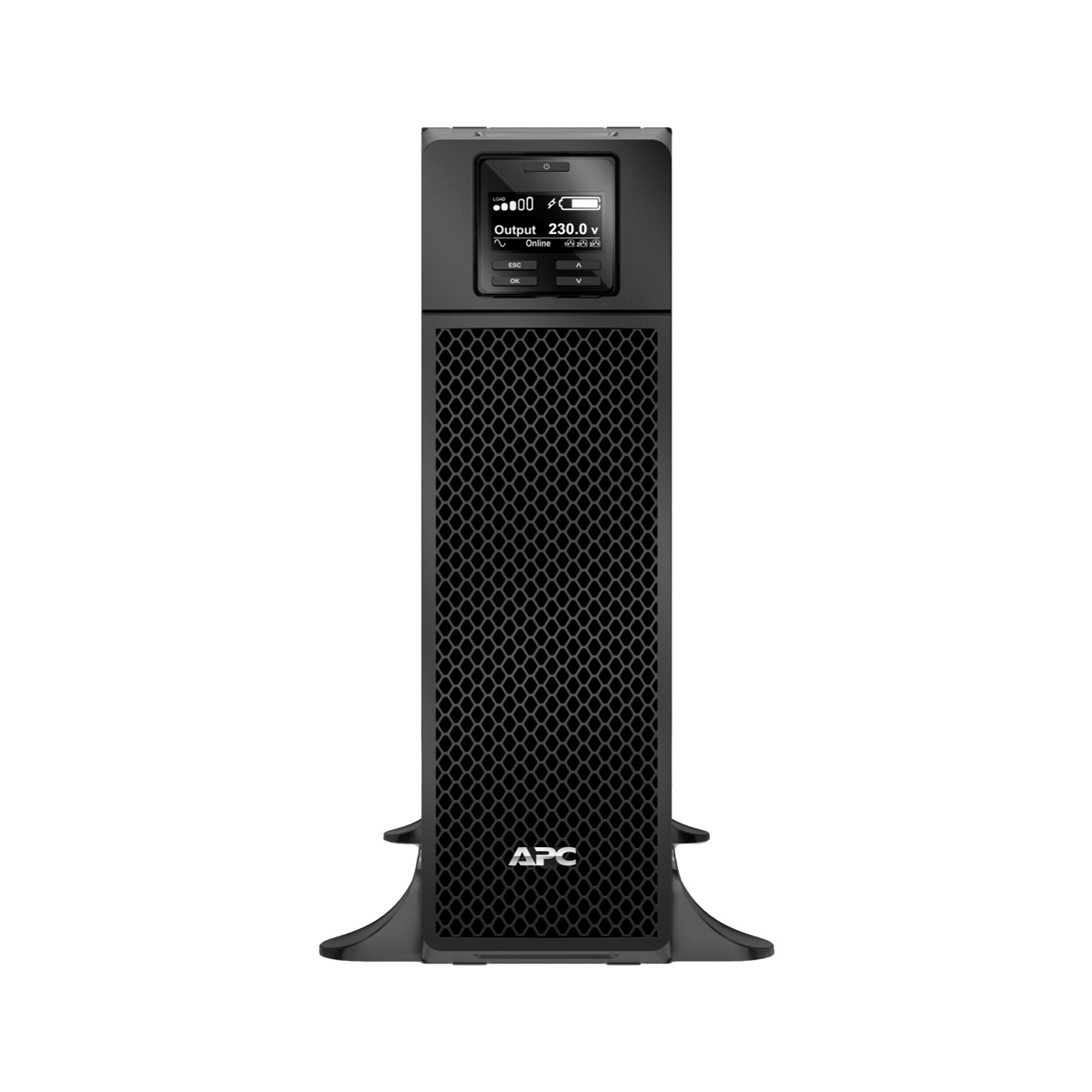

APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Model: SRT5KXLI

Download Product Datasheet

                    Discontinued

0 EGP Inc. VAT

Out of stock

SKU SRT5KXLI Categories , , Tags , , , ,



Overview
PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Lead timeUsually in Stock



Main
Main input voltage230 V
Other input voltage220 V

240 V

Main output voltage230 V
Other output voltage220 V

240 V

Rated power in W4500 W
Rated power in VA5000 VA
Output Connection type6 IEC 60320 C13

2 IEC Jumpers

4 IEC 60320 C19

Battery typeLead-acid battery
Provided equipmentCD with software

Communication cable

Documentation CD

Installation guide

Removable support feet

Temperature probe

USB cable

Warranty card

Web/SNMP management card



General
Product web sub-familyHigh density
Number of power module filled slots0
Number of power module free slots0
RedundantNo



Physical
ColorBlack
Height43.2 cm
Width13 cm
Depth71.94 cm
Net weight54.43 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes



Input
Network frequency40…70 Hz auto-sensing
Number of input connectors1 hard wire 3-wire (1P + N + E)
Input voltage limits100…275 V adjustable (half load)



Output
Maximum configurable power in W4500 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeInternal bypass (automatic and manual)
Maximum configurable power in VA5000 VA



Conformance
Product certificationsCE

EAC

IRAM

RCM

VDE

MarkingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation0…40 °C
Relative Humidity0…95 % non-condensing
Operating altitude0…10000 ft
Ambient air temperature for storage-15…45 °C
Storage Relative HumidityNon-condensing 0…95 %
Storage altitude0.00…15240.00 m
Acoustic level55 dBA
Heat dissipation931 Btu/h
IP degree of protectionIP20



Batteries & Runtime
Run TimeView Run Time Graph
EfficiencyView Efficiency Graph
Number of batteries filled slots2
Number of battery free slots0
Battery recharge time1.5 h
Number of battery replacement quantity1
Battery voltage192 V
Battery charger power560 W rated
Battery power in VAH845 VAh runtime
Battery life3…5 year(s)
Battery optionSRT192BP 1 2535 VAh

SRT192BP 2 4225 VAh

SRT192BP 3 5915 VAh

SRT192BP 4 7605 VAh

SRT192BP 5 9295 VAh

SRT192BP 6 10985 VAh

SRT192BP 8 14365 VAh

SRT192BP 10 17745 VAh

Extended runtime1



Communications & Management
Free slots1
Preinstalled deviceNetwork management card 3 with environmental monitoring
Control panelMultifunction LCD status and control console
AlarmAudible and visible alarms prioritized by severity
Emergency power offYes



Surge Protection and Filtering
Surge energy rate480 J

Packing Units
Package 1 Height33 cm
Package 1 Width61 cm
Package 1 Length96 cm
Package 1 Weight63.6 kg
Unit Type of Package 2P12
Number of Units in Package 21
Package 2 Height80 cm
Package 2 Width80 cm
Package 2 Length120 cm
Package 2 Weight75 kg



Contractual warranty
Warranty3 years repair or replace (excluding battery) and 2 years for battery
